🗣️ Prism AAC

Help nonverbal kids talk. Augmentative & Alternative Communication for children with motor impairments and complex communication needs. Tap pictures, build sentences, hear them spoken aloud — in 16+ languages. Works on any tablet or laptop, with or without internet.

Open source (AGPL-3.0 ). Hosted free at prism-aac.vercel.app . Standalone repo: prism-aac.

View Interface / Diagram

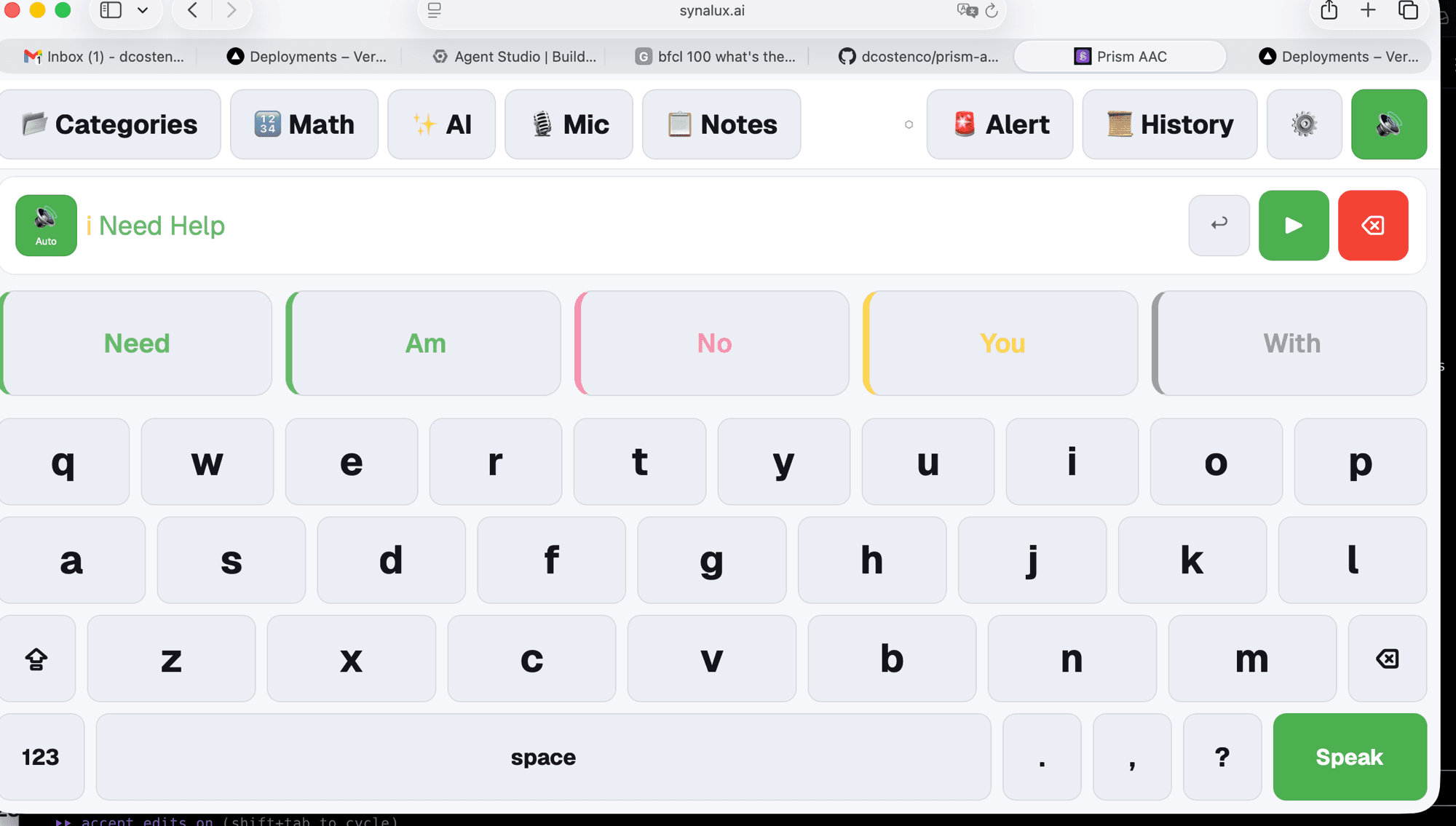

Prism AAC home screen Home screen — quick categories, math panel, schedule, games, and settings.

🖼️ Pictures → Words → Speech (PECS-style)

The core AAC primitive. Tap picture tiles to build a sentence; the app reads it aloud in the child’s language.

22 default categories — Food, Feelings, School, Body, Animals, Colors, Time, Help/Needs, Quick Talk, etc. Caregiver-extendable.
Pictogram library — high-contrast, high-readability symbols designed for low-vision users.
Sentence bar — tap-and-build, then 🔊 to speak. Long-press to edit a tile.
Per-child layouts — a BCBA can lock categories visible to a specific child.

View Interface / Diagram

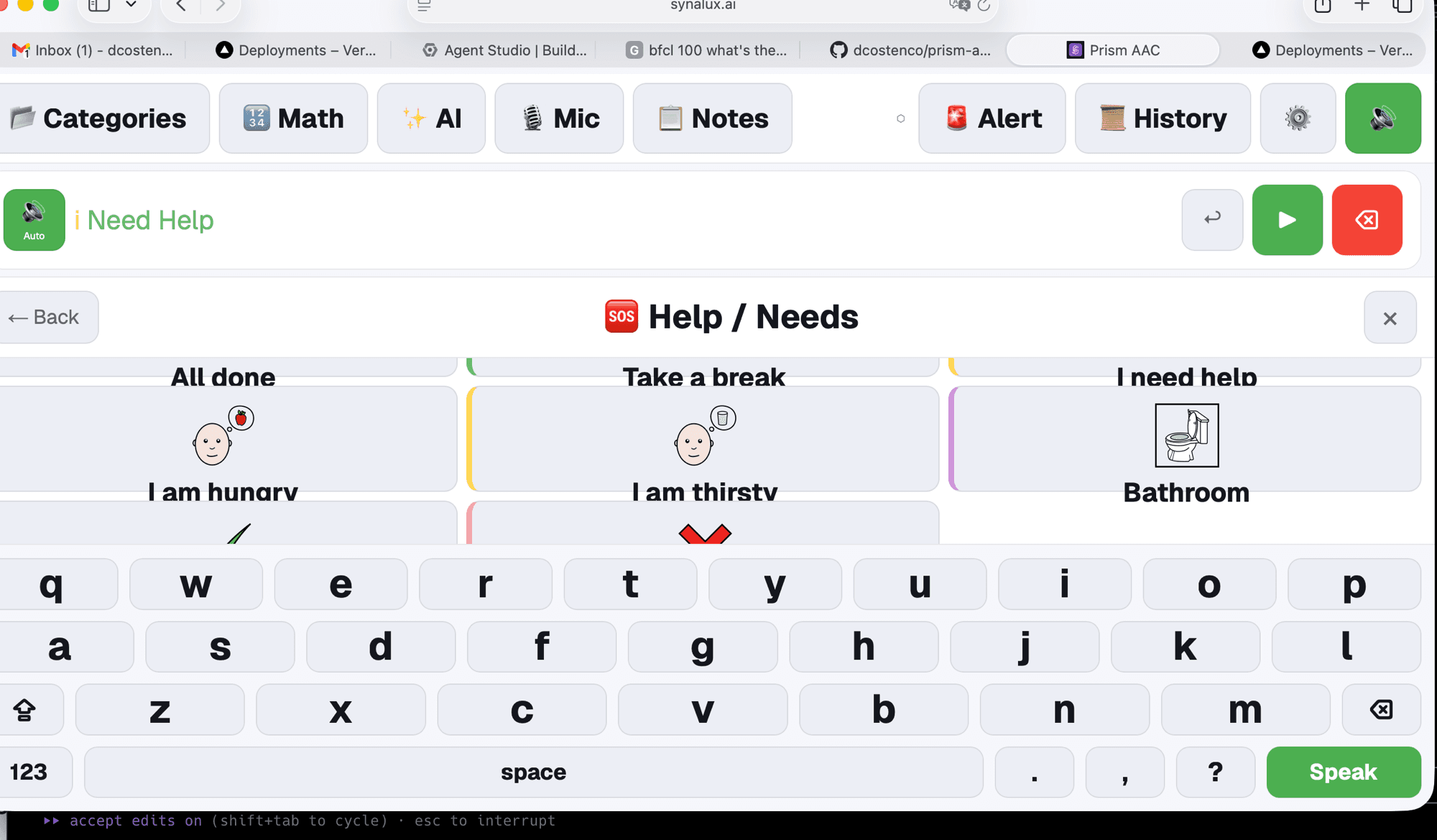

Pictogram categories Pictogram categories — tap to build a sentence, hear it spoken.

⌨️ Keyboard + Word Prediction

For older or higher-functioning users, a full keyboard with multilingual prediction.

Per-user learning — prediction model adapts to the child’s vocabulary over weeks.
Autocorrect — fixes hurried/motor-impaired typing (typos, dropped letters, missing diacritics) via Gemini 2.5 Flash-Lite. Multilingual: en/ru/ro/es/uk/pl + Cyrillic/Hebrew/Arabic script detection.
Word completion — partial → full word in 750ms median (hw → how are you).
Local-first — when prism-coder:14b is running on the device, autocorrect runs offline with zero network.

🍽️ Food Ordering & Real-World Scenarios

Pre-built sentence chains for common situations — restaurants, doctor visits, school transitions.

Quick-order tiles — “I want pizza”, “with cheese”, “no onions” — chained in 3 taps.
Allergy alerts — child can self-advocate (“I am allergic to peanuts”) with a single tap.
Caregiver-customizable menus per restaurant chain (McDonalds, Subway, Olive Garden, etc.).

View Interface / Diagram

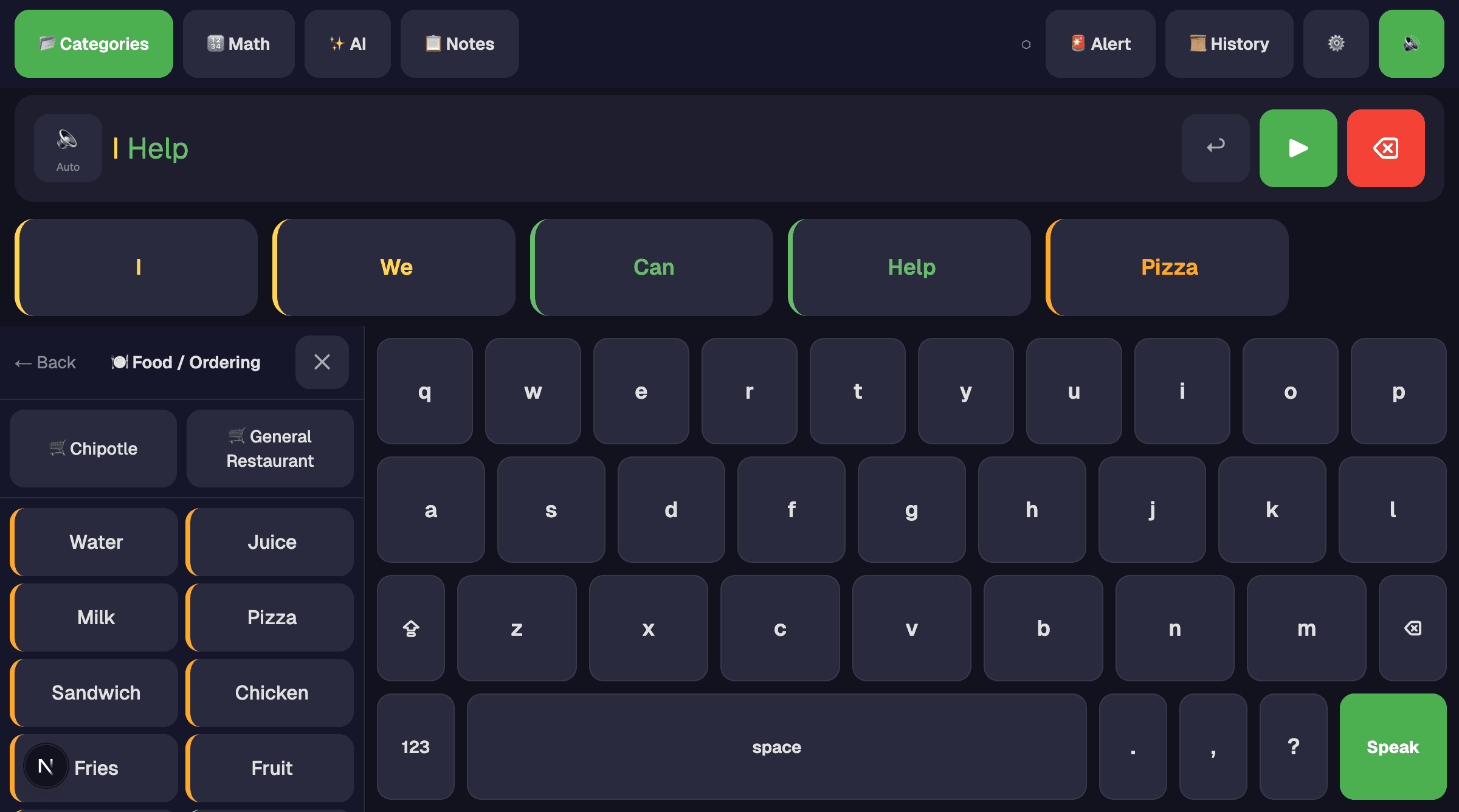

Food ordering scenario Food ordering — real-world scenario tiles for restaurants, school, doctor visits.

🧮 Math Panel (Panther Math Paper-style)

Graph-paper canvas with KaTeX rendering. Designed for school-age users who need to do math without speech.

Drawing surface — pen + eraser, snapping grid, geometric figures (circle, triangle, parallelogram).
KaTeX equation editor — write \frac{x^2}{y} and have it rendered + spoken aloud.
AI tutor (paid) — speaks answers, explains step by step. Backed by Claude Sonnet 4 with Claude Haiku 3.5 fallback.
Save & share — exports to caregiver notes for homework review.

View Interface / Diagram

Math panel with graph paper canvas Math panel — graph paper, KaTeX equations, optional AI tutor.

🎮 Therapeutic Games (9, evidence-based)

Built to teach communication, NOT for screen-time entertainment.

Bubble Pop — single-cause-effect for early causality learners.
Color Hunt / Match It / Category Sort — receptive language + categorization.
My Story — generative narrative building with picture sequences.
Yes/No / Finish It / Emotion Match / What Comes Next — comprehension + theory of mind.
Free tier: 3 games. Paid tier: all 9 + caregiver-tuned difficulty.

👋 Hands-Free with Gesture Recognition

For users who can’t reliably tap a touchscreen.

Head-pose tracking + dwell-click via FaceLandmarker (MediaPipe Tasks). Local, browser-only — no video uploaded.
Hand-pose tracking for users with limited fine motor control — pinch, point, swipe.
Per-user gesture profiles — calibrate once, the app remembers.
Configurable dwell time — 200ms (fast) to 2000ms (cautious).

🗓️ Visual Schedule & Reward Shop

Picture-based daily routines that reduce transition anxiety.

Time-blocked tiles — “8am Breakfast”, “9am School”, “12pm Lunch”, with pictograms and a check-off ritual.
Reward shop (paid) — children earn tokens for completed tasks, redeem for caregiver-approved rewards (extra game time, choice of dinner, etc.). Trauma-informed: opt-in, no punishment mechanic.

🩺 Clinical-Grade Defaults

Designed with BCBAs and SLPs.

Verbal operant tracking — matches BACB Task List 5th Edition (mand, tact, intraverbal, echoic).
Caregiver notes sync (paid) — ABC-format notes travel encrypted between home, school, and clinic via the Synalux portal.
AAC access never restricted as a consequence — hard-coded into the app design. A child must always have their voice.
Trauma-informed defaults — no punishment mechanics, reward shop is opt-in, all “negative feedback” UX flows have been removed.

View Interface / Diagram

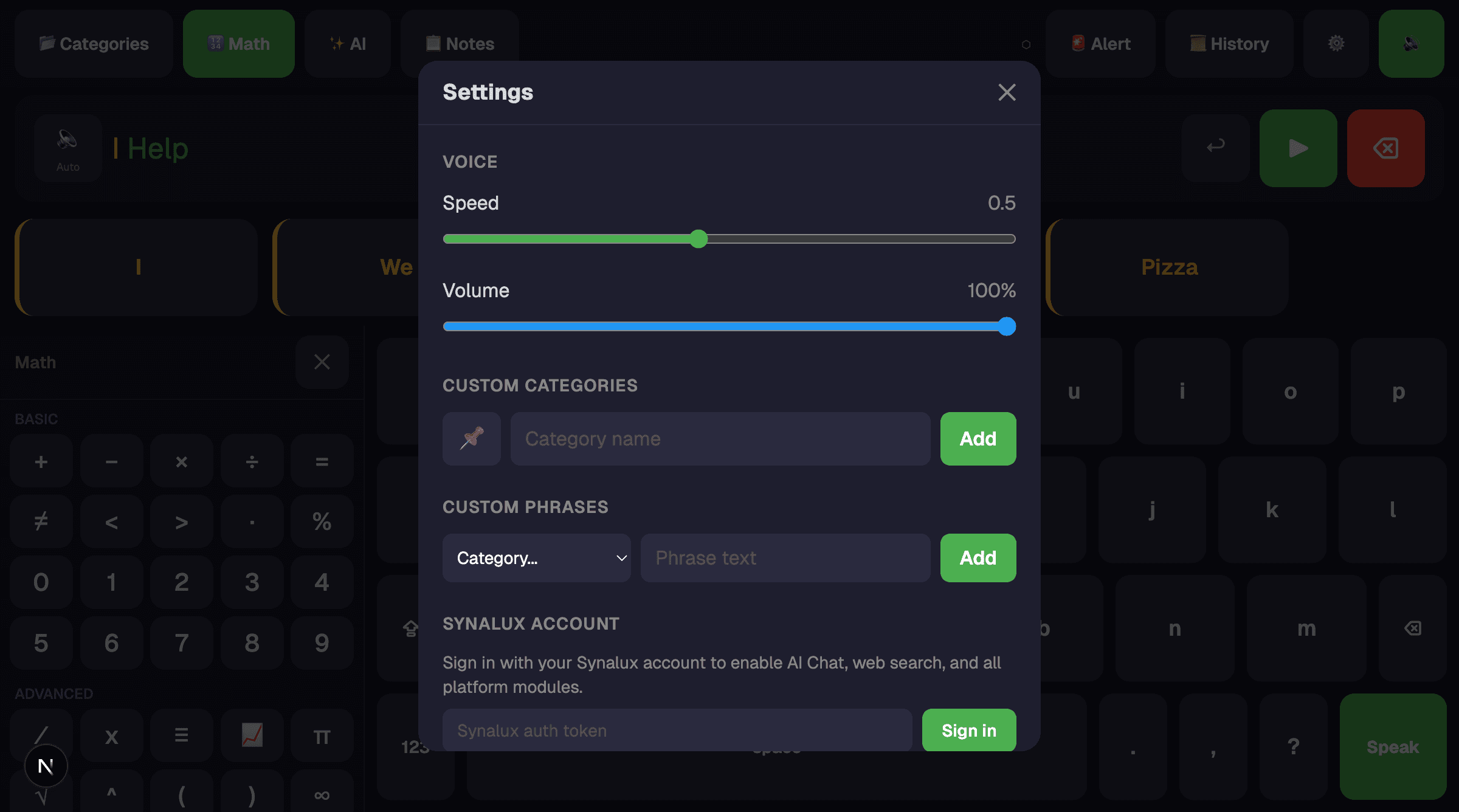

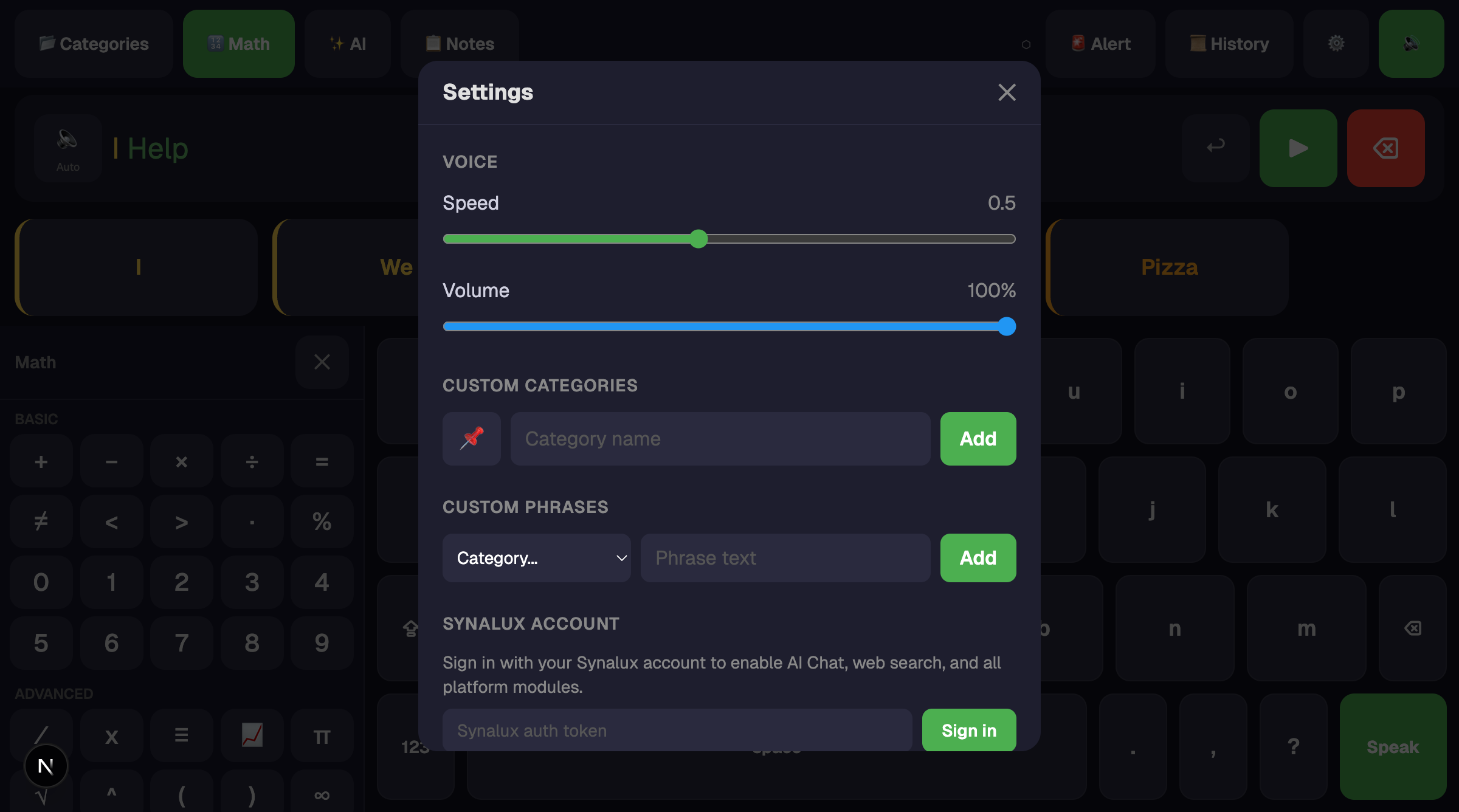

Settings — voice, language, accessibility Settings — voice, language, accessibility, gesture calibration.

📴 Works Offline

The AAC primitive is the user’s voice. It cannot depend on a network.

Feature	Offline-capable	How
Keyboard input	✅	Pure UI
Pictogram tiles + categories	✅	Bundled assets, IndexedDB persist
Local word prediction	✅	`engine/predictionEngine.ts` (n-gram + user history)
Translation (14 locales)	✅	Bundled `offlineDictionary.ts` (4000+ word pairs)
Whisper transcription	✅	WASM in-browser model
Neural TTS (Tier 1.5: Kokoro-82M)	✅ en/es/fr/pt/ja/zh	Bundled neural model
OS Web Speech API premium voices	✅	Browser-native
WASM espeak-ng (last resort)	✅	Bundled fallback
Categories/phrases/notes	✅	Zustand + IndexedDB
Emergency alerts (10-min queue TTL)	✅	Local queue, retry on reconnect
Sync to Synalux cloud	❌ online-only	Background, non-blocking
AI chat assistant	❌ online-only	Claude Sonnet 4 via portal
Cloud autocorrect (Gemini Flash-Lite)	⚠️ degrades to local	5s timeout → local prediction engine

When the network goes, the device still talks.

🎙️ Voice (TTS) Architecture — 4-Tier Fallback Chain

Tier	Engine	Quality	Offline	Notes
1	Inworld TTS-2	Best (paid all langs; free for ro/uk/ru/de/ko/ar — Synalux absorbs cost)	—	Default for paid tier
1.5	Kokoro-82M neural	Very good	✅ en/es/fr/pt/ja/zh	Bundled WASM
2	OS Web Speech API premium voices	Good	✅	Browser-native
3	WASM espeak-ng	Acceptable	✅	Last resort

Voice picker (paid): all 60+ Inworld voices, including child voices, accents, and voice cloning (“speak in MY voice — I trained it last week”).

🏗️ Architecture (server-side via Synalux portal)

Path	Function	Model
`/api/v1/text/correct`	Autocorrect + word completion	Gemini 2.5 Flash-Lite (multilingual bench-validated; 752ms avg; 4.3× cheaper than 2.5 Flash)
`/api/v1/prism-aac/predict`	5-word continuation prediction	Gemini 2.5 Flash-Lite (free tier); Claude Haiku/Sonnet (paid)
`/api/v1/prism-aac/chat`	AAC AI assistant	Local prism-coder:14b (primary) → Claude Sonnet 4 (cloud paid). Fallback: Claude Haiku 3.5 / Gemini 2.5 Flash by tier.
`/api/v1/prism-aac/tts`	Text-to-speech	Inworld TTS-2 + Azure Neural fallback
`/api/v1/translate`	Sentence translation	Gemini 2.5 Flash + offline dictionary fallback
`/api/v1/transcribe`	Voice → text	Whisper (WASM, in-browser primary)

Stack: Next.js 15 (App Router), Zustand state, Whisper WASM, Inworld TTS-2 + Azure Neural fallback, Kokoro-82M offline TTS, FaceLandmarker (gestures), MediaPipe Tasks (hand pose).

💳 Plans (Synalux pricing)

	Free	Paid
Picture tiles + 22 categories	✅	✅
Type-to-speak	✅	✅
Default voice (Inworld)	✅	✅
Math panel	✅ basic	✅ + AI tutor
Schedule	✅	✅ + reward shop
Games	3	All 9
Voice picker (60+ Inworld voices)	—	✅
Voice cloning	—	✅
Caregiver notes sync	—	✅
Word prediction (per-user learning)	—	✅
AI chat (Claude Sonnet 4 + tier fallback)	—	✅

See full pricing →

🧪 Self-Host & Fork


git clone https://github.com/dcostenco/prism-aac.git
cd prism-aac
npm install
npm run dev    # http://localhost:3000

AGPL-3.0 — fork freely; share modifications. Synalux operates the canonical hosted version. See prism-aac/CONTRIBUTING.md , ACCESSIBILITY.md , SECURITY.md .
